| Loading capacity | 80-150 tons |
| Main material | Q355/Q345/T700 |

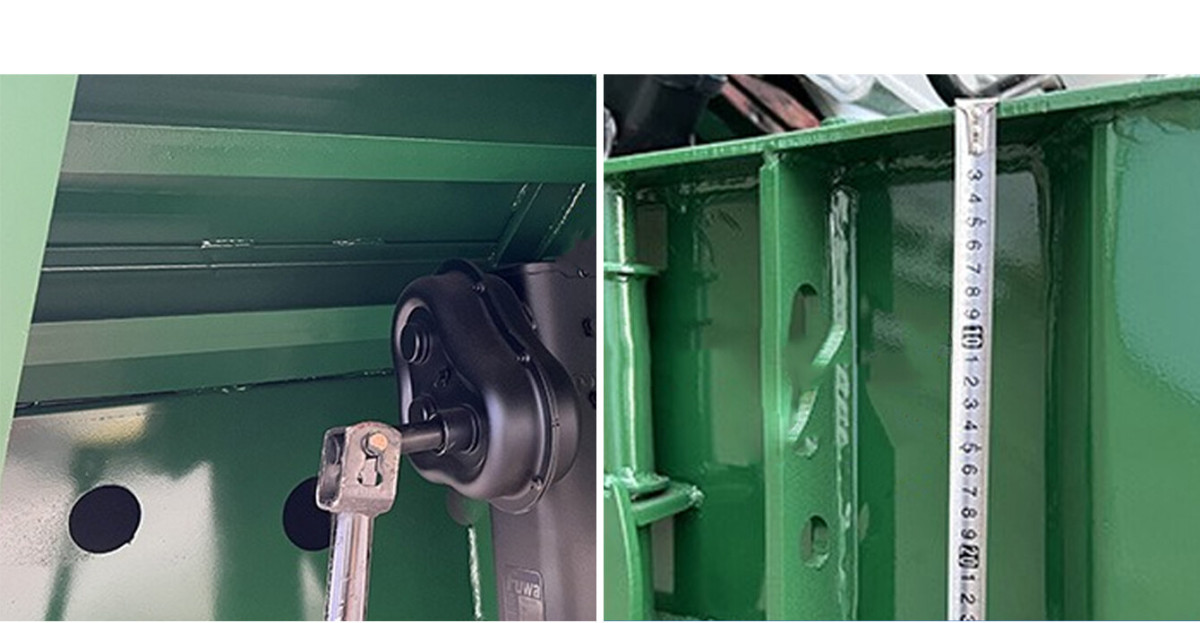

| Main Beam | 450-580mm height |
| Side Beam | 16-30mm “I”Steel |
| Dimension | 11000mm-16000mmX3000-35000X165mm (customized accept) |
| Axle | 13T/16T,20T one line two axle,YUEK,BPW,FUWA/customized |
| Rim | 6.5-20/7.5-20/8.0-20/8.5-20 |
| Spare parts | Famous brand such as Jost and wabco |

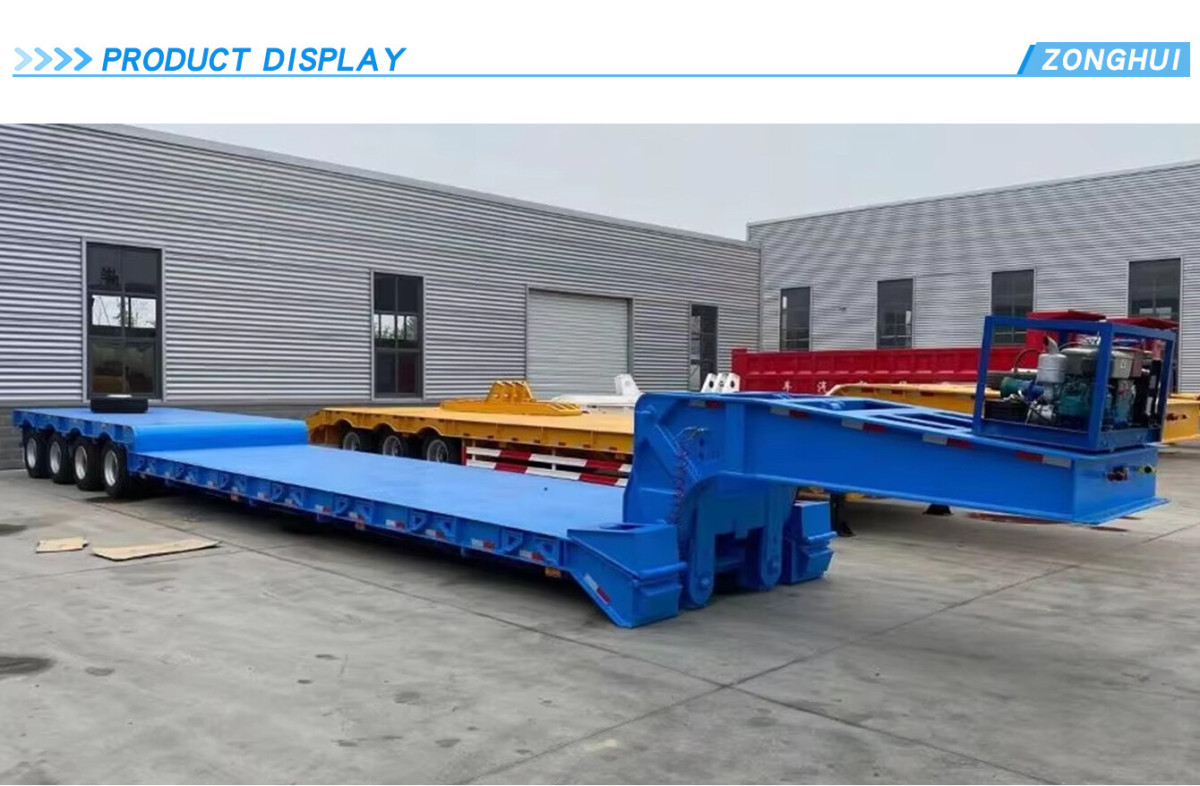

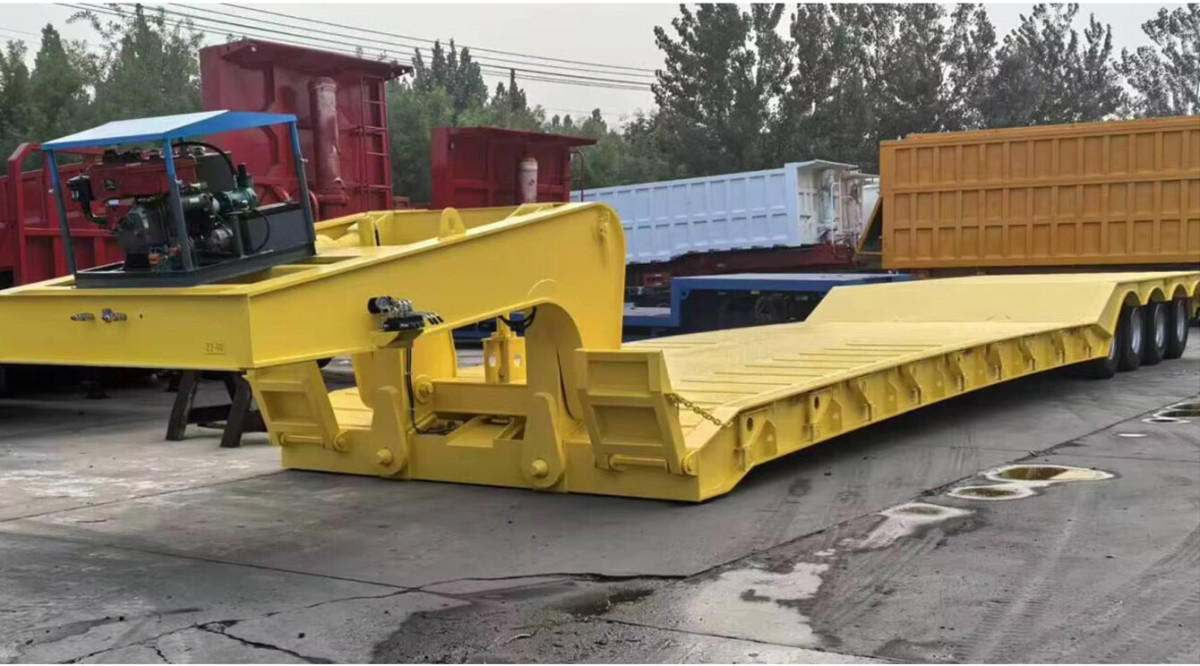

| Hydraulic Power Station | 12kw Diesel engineer |
| Spare tire | One spare tire |
| Chassis | High strength and tension steel material, Main beams are welded by submerge Arc welding technology. |
| Side Extension | Steel side extension brackets (500m extension) |

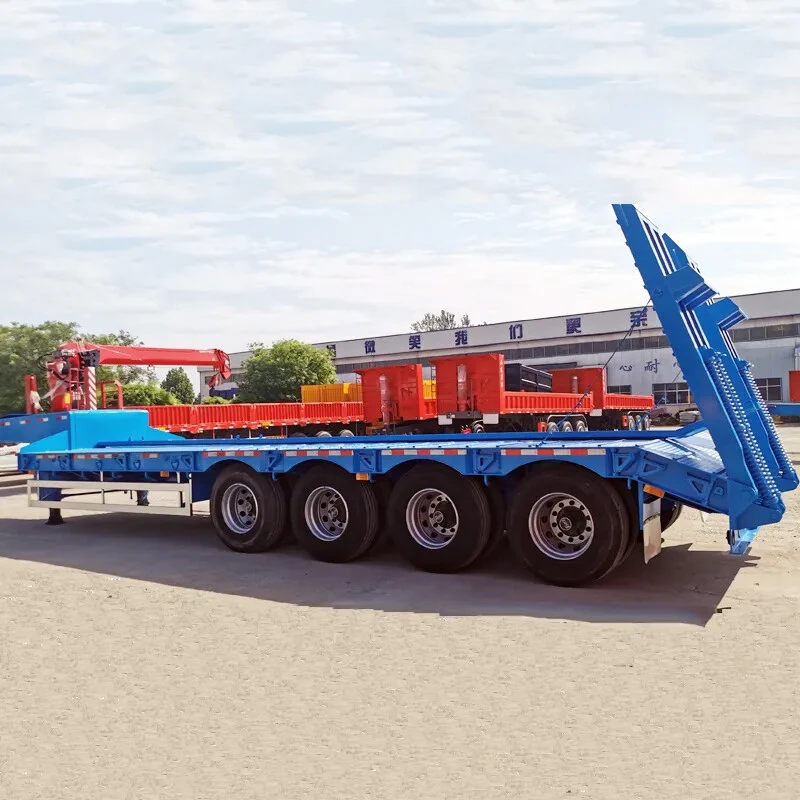

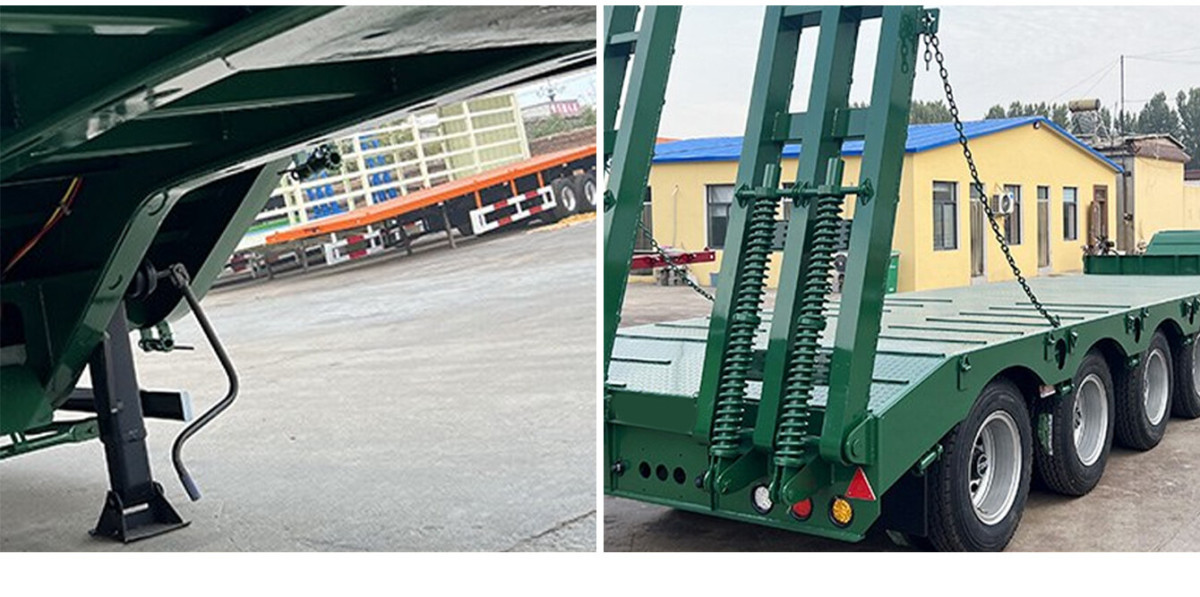

| Rear Ramps | Mechanical or hydraulic ramps |
| Floor | checkered plate, rubber or hardwood on the both side can be customized |
| Axle Suspension | 13/16/20TON BPW,FUWA,YUEK optional, with leaf spring |
| Brake System | Dual line brake system, WABCO relay valve |
| Electric System | 24v lighting system with 7 pin socket |
| King Pin | 2’’/3.5’’ king pin, boly-in type or welding on type |
