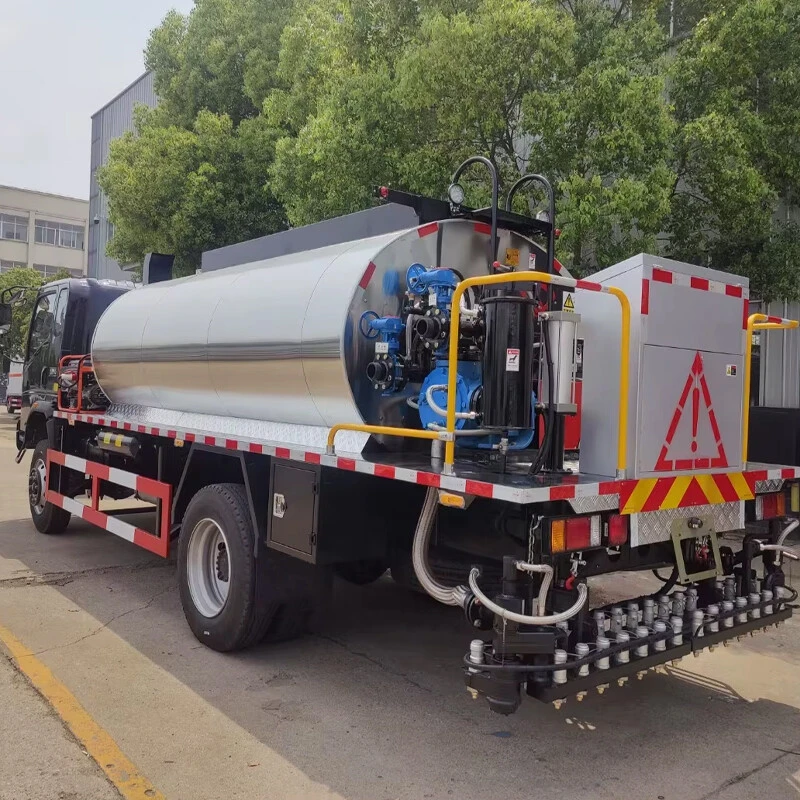

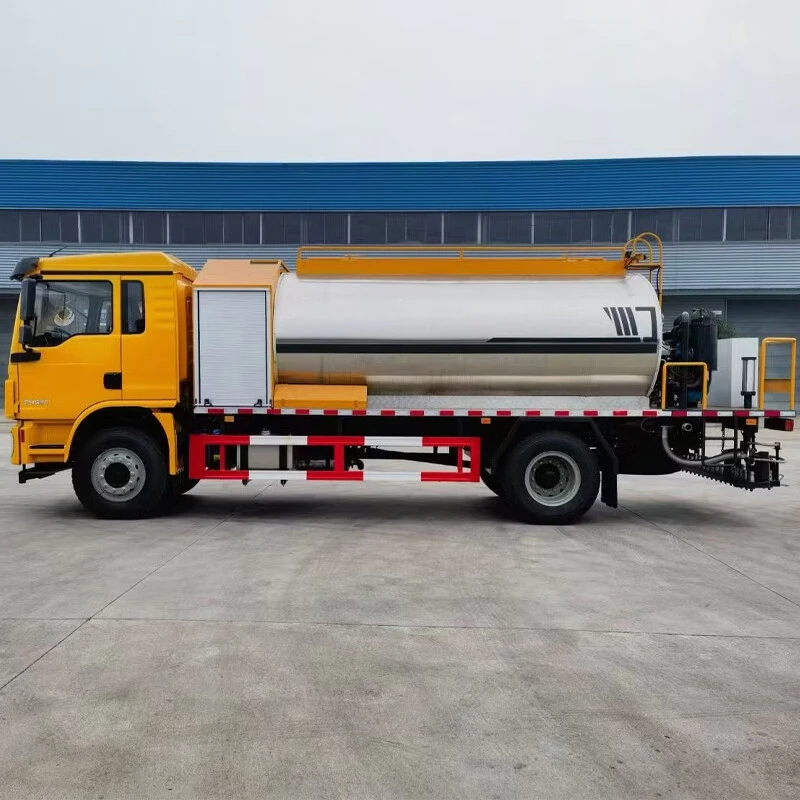

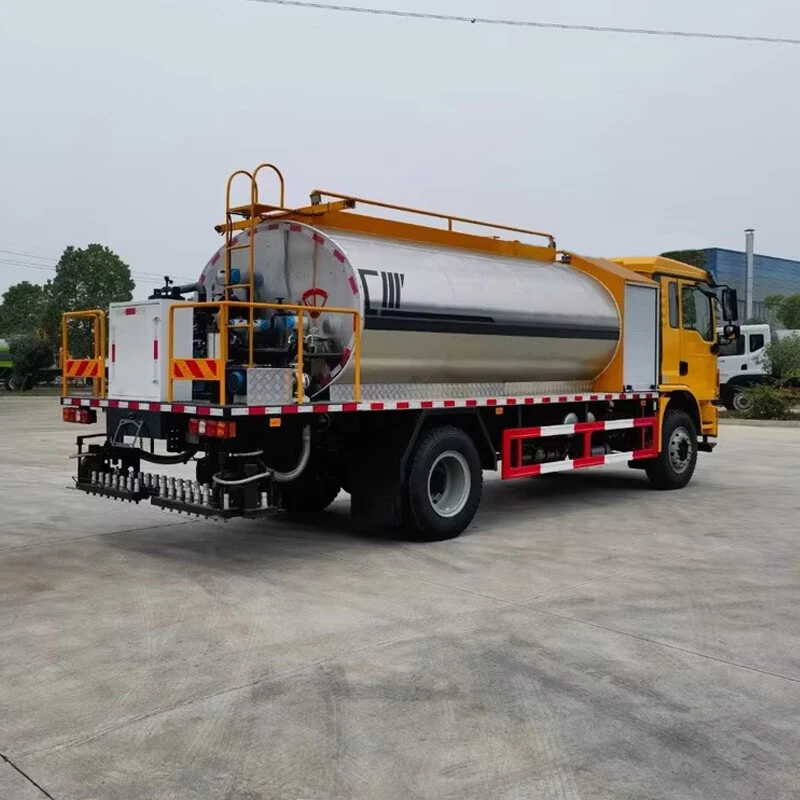

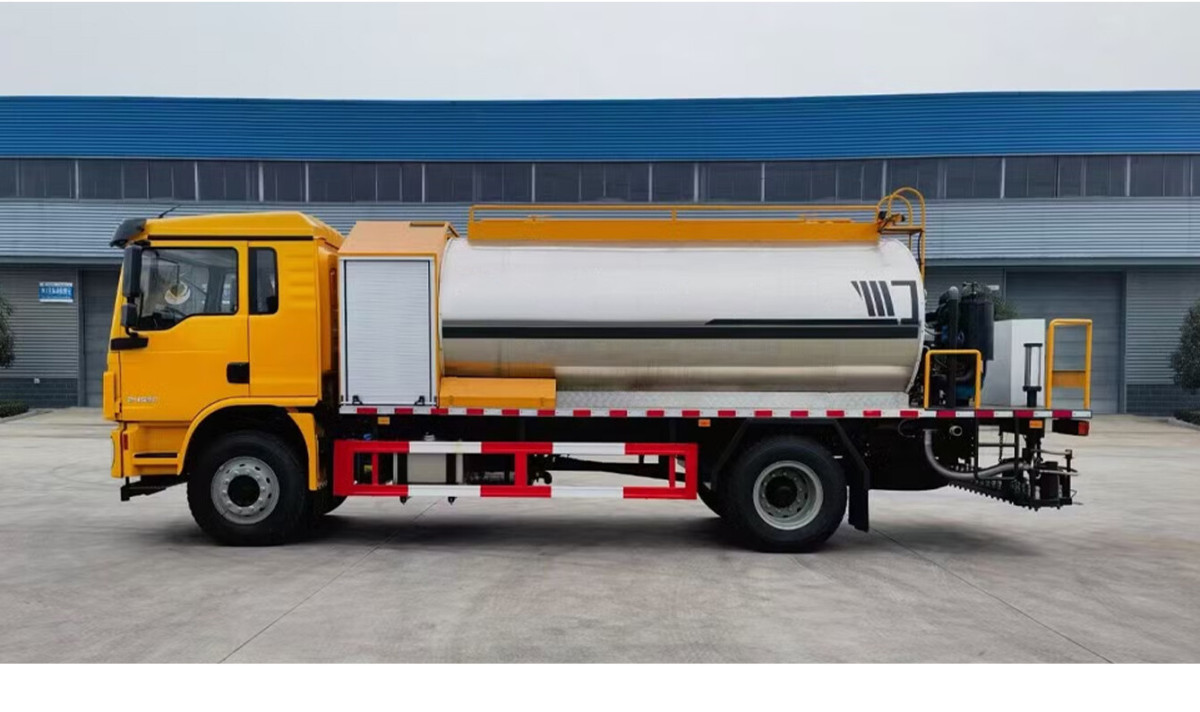

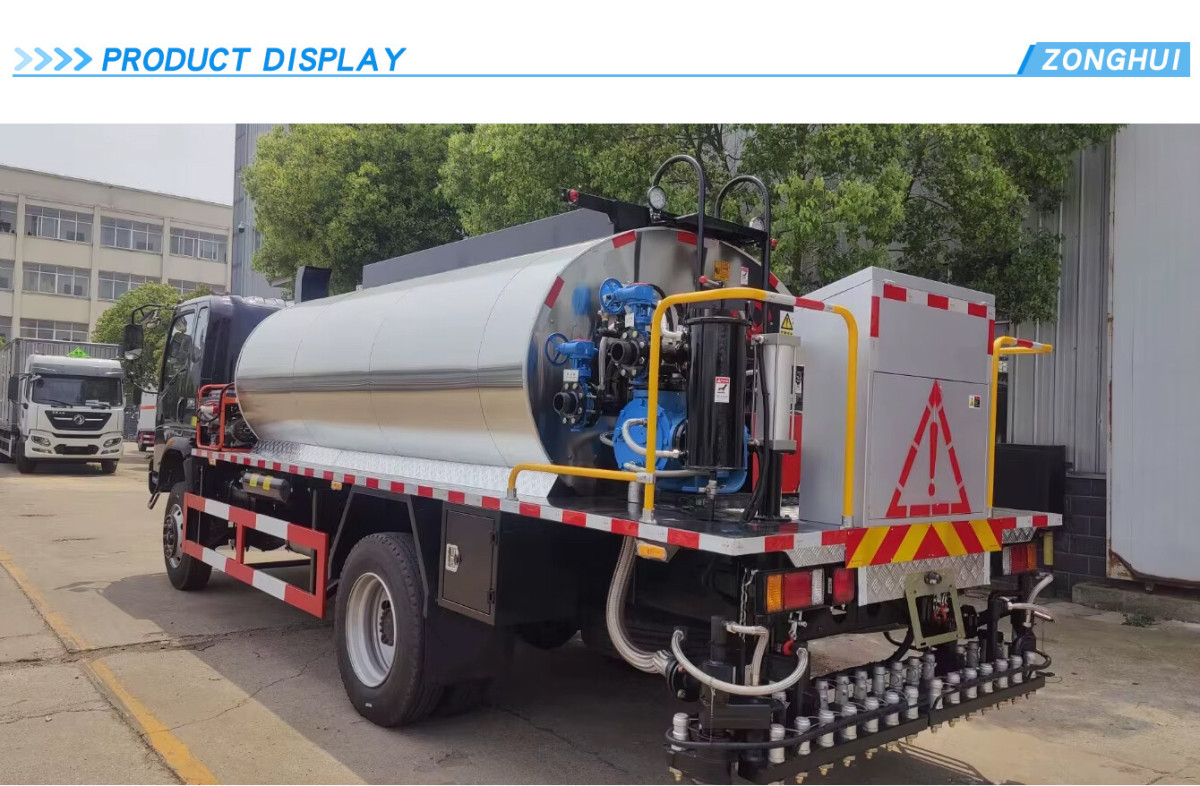

Shacman 12CBM Asphalt Sprayer Truck

Shacman 12CBM Asphalt Sprayer Truck
Asphalt Tank:12 cbm/12000liters
Heating system to improve heating efficiency
World famous hudraulic pump,hudraulic motor,asphalt pump,Proportional Valve,automatic control system
Italy burner for automatic fire and temperature control

>>>>PRODUCT  DESCRIPTION

Specifications


  Chassis
  Overall Dimension  8420x2500x3160mm
  Gross Vehicle Weight  15800 kg
  Curb Weight  9950 kg
  Loading Weight  5655 Kg
  Wheel Base  4600 mm
  Front/rear Tread  1210/2320 mm
  Approach/Departure Angle  24/10 degree
  Front Axle  5000kg
  Rear Axle  10000kg
  Engine  Diesel Engine,

  watering cooling, four stroke, 6 cylinder in line
  Engine horsepower  118 HP EURO II
  Max Driving Speed  90 km/h
  Cabin  3 Passenger allowed, Left Hand Driving, with Air Conditioner
  Tire  9.00R20 (6 pieces+1piece spare tire)
  Upper part
  Asphalt Tank  12 cbm 12000liters
  Outside Material  Stainless plate
  Insulation layer  ≤20°C/8h
  Bitumen pump  QGB950,950L/min

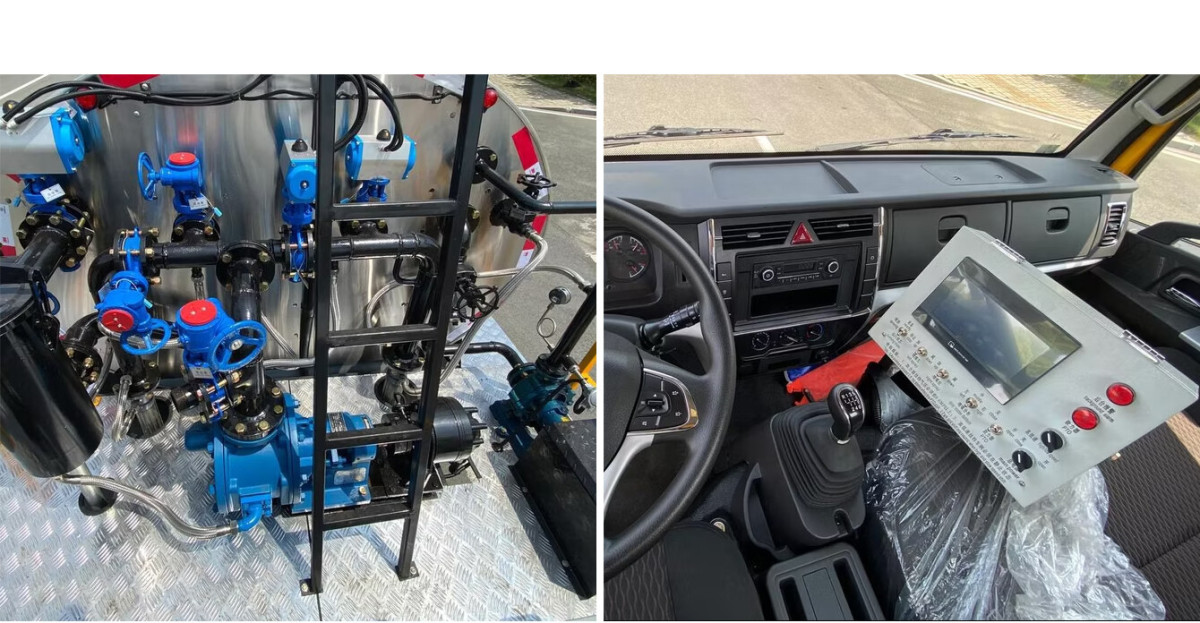

  Hydraulic System
  Hydraulic pump  CBQ550-L
  Driving Motor  05-110-BD31
  Proportional Valve  EFBG-03-160-HF
  Shuttle Valve  Shanxi Yuci brand
  Overflow Valve  Shanxi Yuci brand

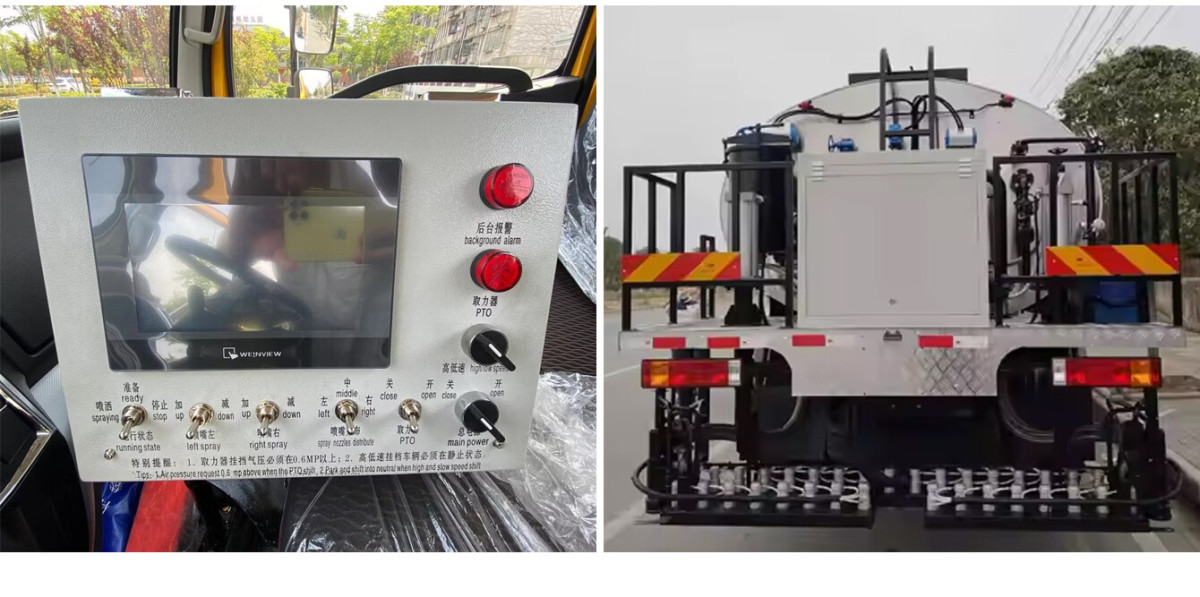

  Control System
  Control System  CLW-30-01/Germany Siemens
  Control Method  Manual and computer control
  Smart asphalt nozzle  36 pcs
