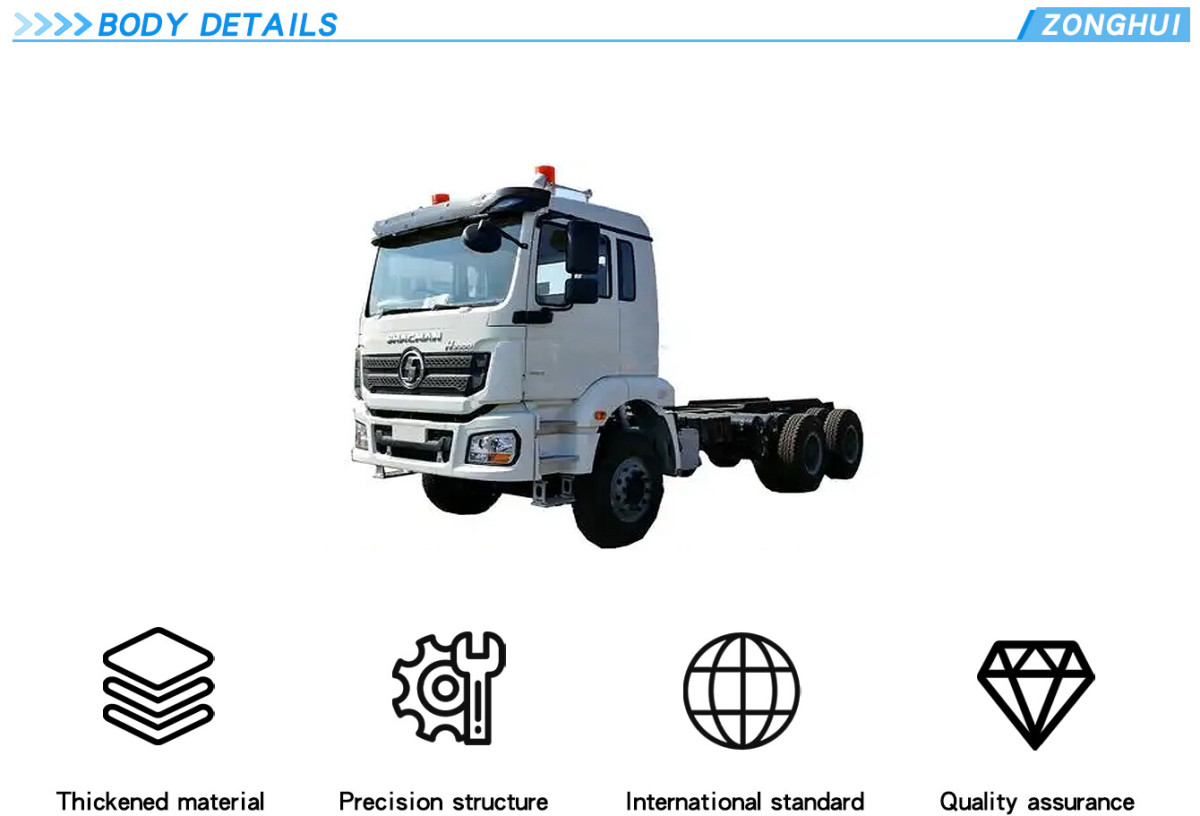

| Drive type | 6X4 |
| Wheel base(mm) | 3175+1400 |
| Overall dimension(mm) | 6990X2490X3450 |
| Curb weight(Kg) | 9100 |
| Load capacity(Kg) | 90000 |
| Cabin | High roof,one and half rows,luxury configuration, |
| 2,3 passengers allowable,with single bunker,A/C |
| Engine | Model | Weichai Engine / Cummins Engine |
| Emission standard | Euro II |
| Description | In-line, 6 cylinders,water cooled,4 strokes,turbo charged,inter-cooled,electric control,high pressure, |
| common rail,diesel engine |
| Gear box | 12JSD200T,manual,12 forward＆2 reverse gears |
| Driving axle | Twin reduction with big torque ratio 5.92, |
| load capacity 16000Kg*2 |
| Front axle | Steering axle,load capacity 7500Kg |
| Frame | 850×300(8+5) |
| Quantity of leaf spring | Front and rear more leaf spring baldes and two main blades two U bolts |
| Clutch | Diaphragm clutch,pull-type Ø430 |
| Inner trimming |
| Standard configuration | Air suspension seat |
| Seat heater |
| Lumbar support to the driver |
| Adjustable steering wheel |
| Electrical system |
| Standard configuration | CAN bus intellectual electronic control system |
| New battery box |
| Start/stop device under the vehicle |
| Safety |
| Standard | Three points safety belt |
| configuration | Automatic clearance adjustment arm,tachometer |
| Service brake | Dual circuit compressed air brake |
| Parking brake | Spring energy, compressed air operating on rear wheels |
| ABS | Optional |
| Comfortable accessories |
| Cab four points full floating suspension | Front and rear coil spring |
| Standard configuration | Cab anti-rolling stabilizing device |
| Hand accelerator |
| Electric window | Provided |
| Chassis |
| Fuel tank | 400L,aluminum fuel tank |
| Standard configuration | Big tool box |
| Reinforced rim (with HQ mark) |
| Three in one lock (Ignition switch, door and fuel tank) |
| Type specification | 12.00R20 |
| Number of tyres | 10+1 |
| Grade ability(%) | 35 |
