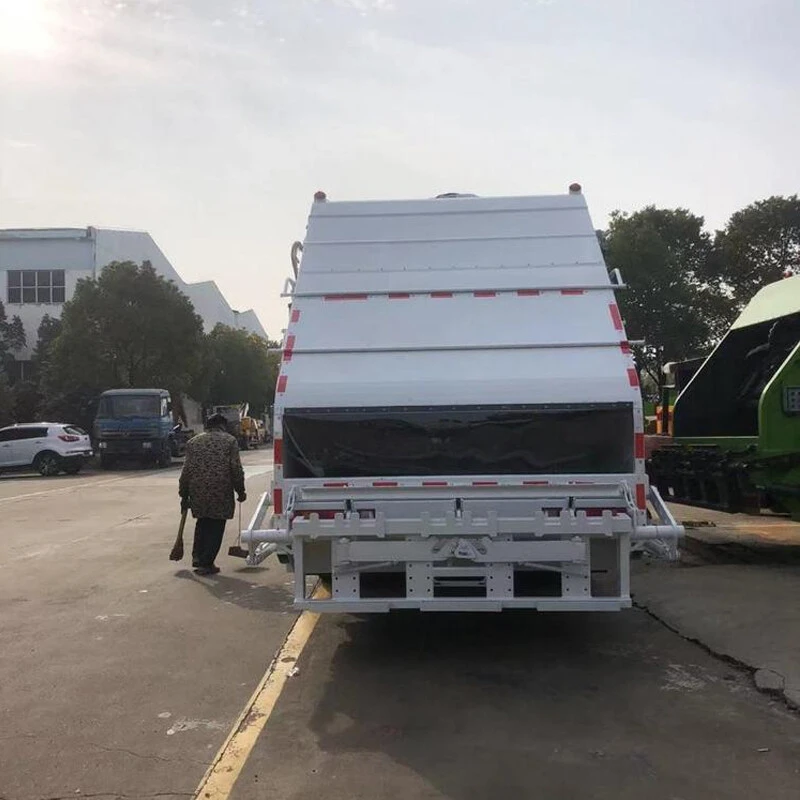

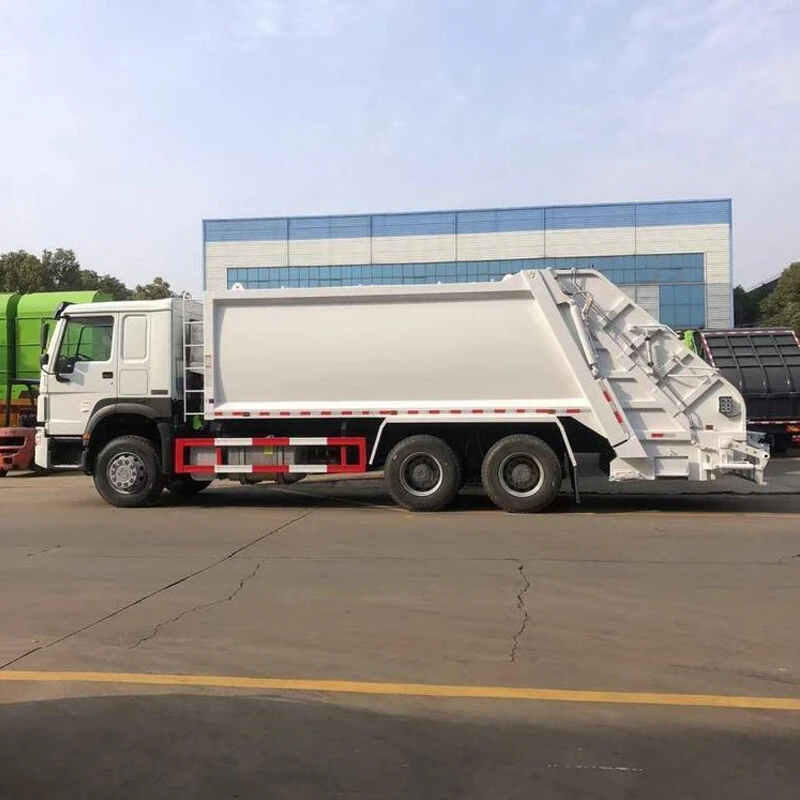

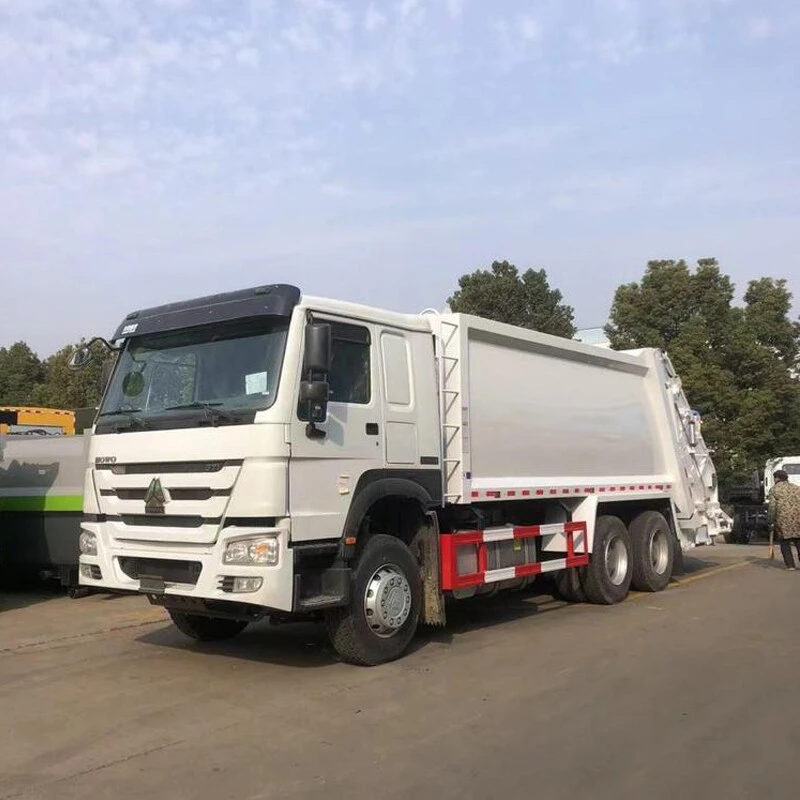

Name: Howo 20m3 Rear Loader Garbage Truck
SKU: 0





Howo 20m3 Rear Loader Garbage Truck

>>>>PRODUCT DESCRIPTION

Specifications

Chassis model	ZZ1257N4341W
Chassis brand	SINOTRUK
Overall dimensions	9800X2496X3048mm
Wheel base	4325+1350mm
Front/rear wheel track	2022,1830/1830mm
Front/rear suspension	1500,2600mm
Approach/departure angle	16/15°
Maximum speed	90km/h
Cab	Configuration	HW76 a row and a half deluxe cab(with sleeping berth), allowable 3 passengers
	Color	White, other color is optional
Engine	Model	WD615.47
	Emission	Euro 3
	Type	6 cylinders, in-line, 4-stroke, water cooled, turbo inter-cooling, direct injection, diesel engine
	Rated power	371hp, rated power speed 2200rpm
	Displacement	9726ml
	Max.torque	1350N.m
	Bore x stroke	126x130mm
Tire	Size	12R22.5 tubeless tire
	Number	10+1 nos
Clutch	Φ430 diaphragm clutch
Fuel tank	400L iron oil tank
Front axle	HF 7 tons
Rear axle	ST 16 tons
Drive form	6X4
Suspension	Multi leaf springs
Rated voltage	24V,DC
Transmissions	gearbox HW19710,10 speed forward 2 reverse.
Steering device	Power assisted steering
Steering wheel	Left hand drive
