Name: Howo 6X4 16 CBM Intelligent Asphalt Distribution Truck
SKU: 0





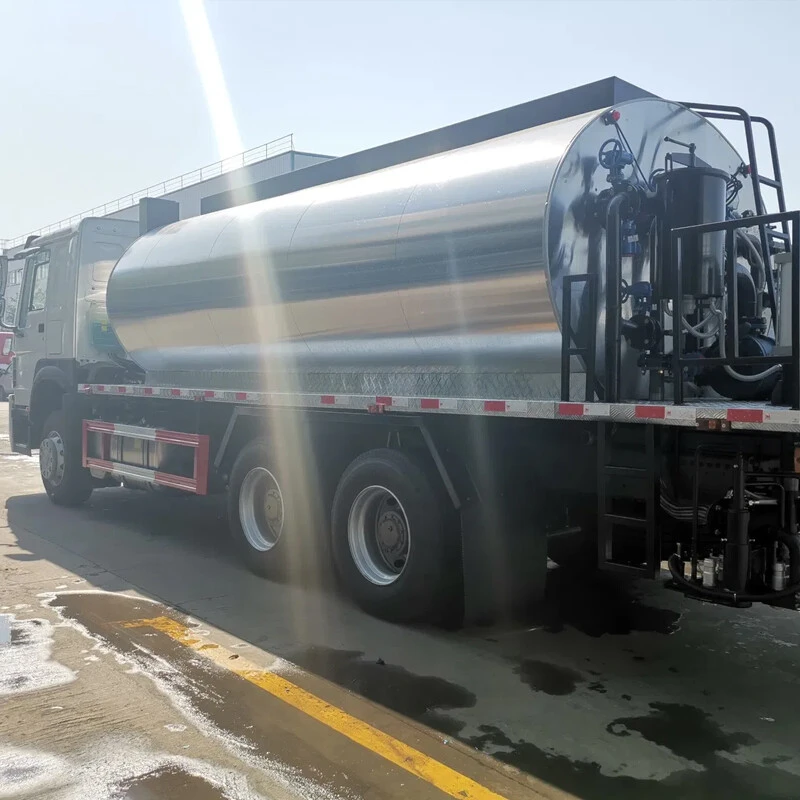

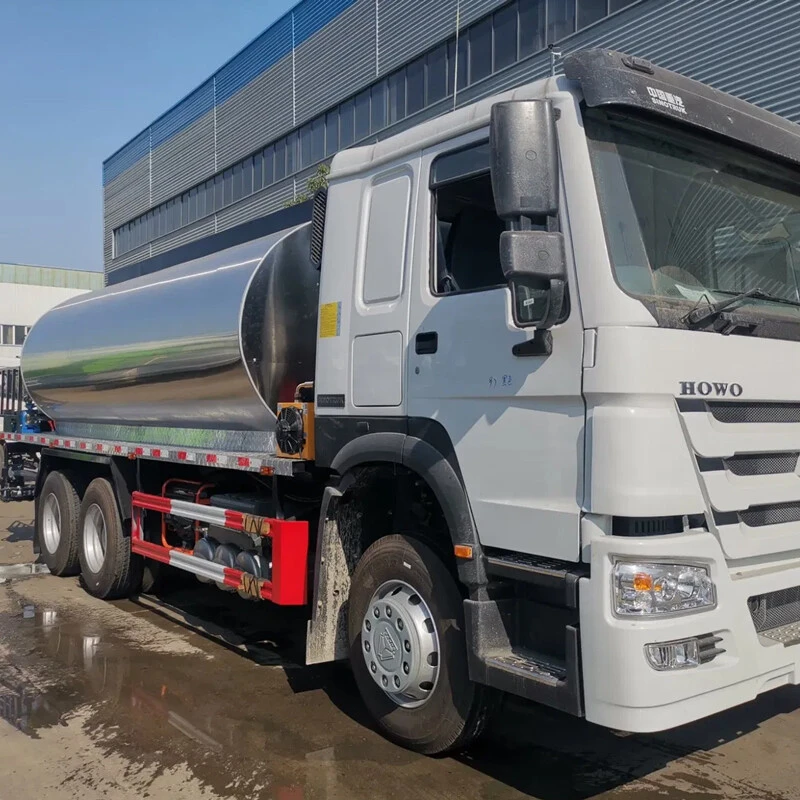

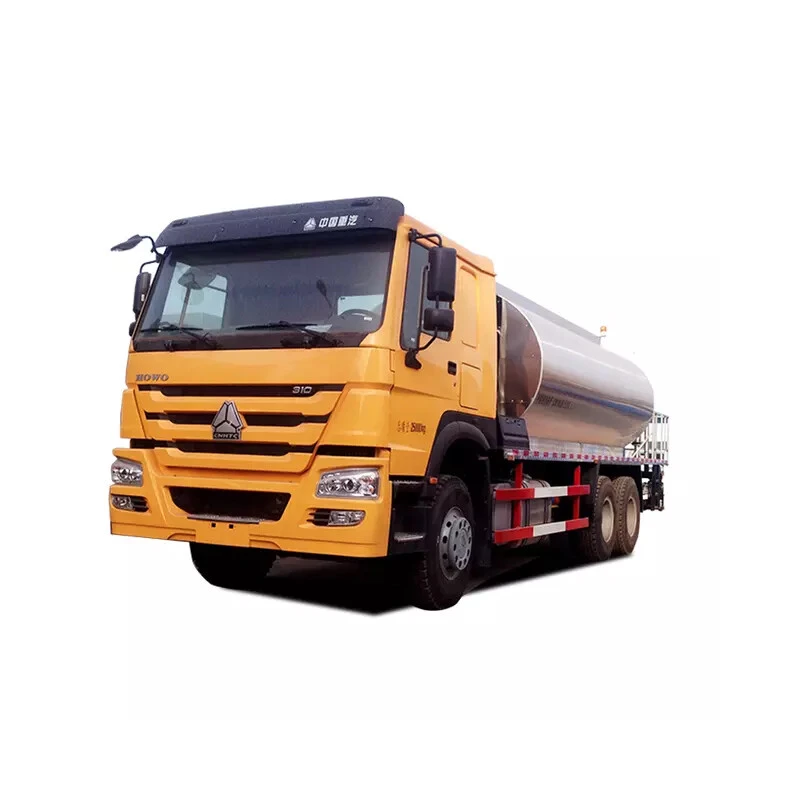

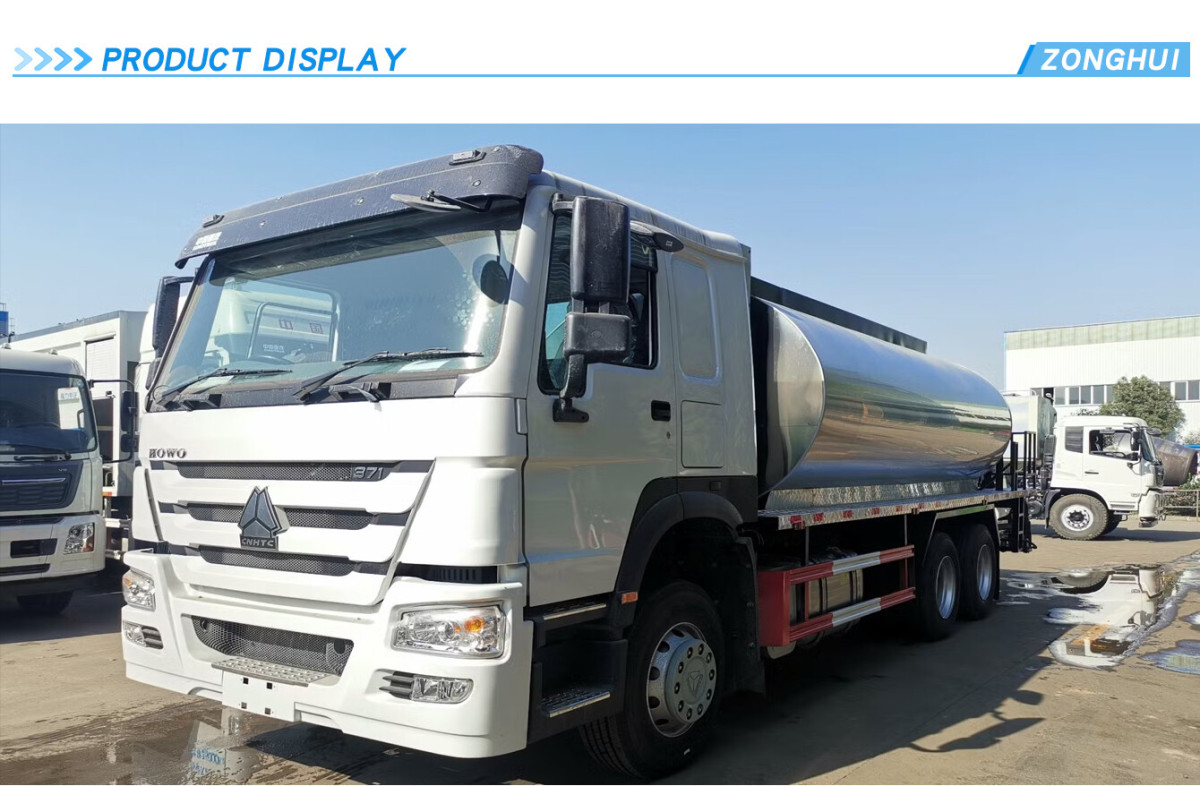

Howo 6X4 16 CBM Intelligent Asphalt Distribution Truck

Truck cabin:Howo HW76 cabin
Engine:336hp/371hp
Wheelbase:4600+1350mm
Steering:LHD or RHD
Asphalt tanker:16,000Liters

>>>>PRODUCT DESCRIPTION

Specifications

Chassis
Overall Dimension	10200x2500x3450mm
Gross Vehicle Weight	25000 kg
Curb Weight	16000 kg
Loading Weight	8870Kg
Wheel Base	4600 +1350mm
Front/rear Tread	1500/2750 mm
Approach/Departure Angle	16/16 degree
Front Axle	7000kg
Rear Axle	18000kg
Engine	WD615.62,Weichai Diesel Engine, watering cooling, four stroke, 6 cylinder in line
Engine horsepower	266HP EURO II
Displacement	9.726L (Diesel)
Max Driving Speed	90 km/h
Cabin	HW76,2~3 Passenger allowed, Right Hand Driving, with Air Conditioner

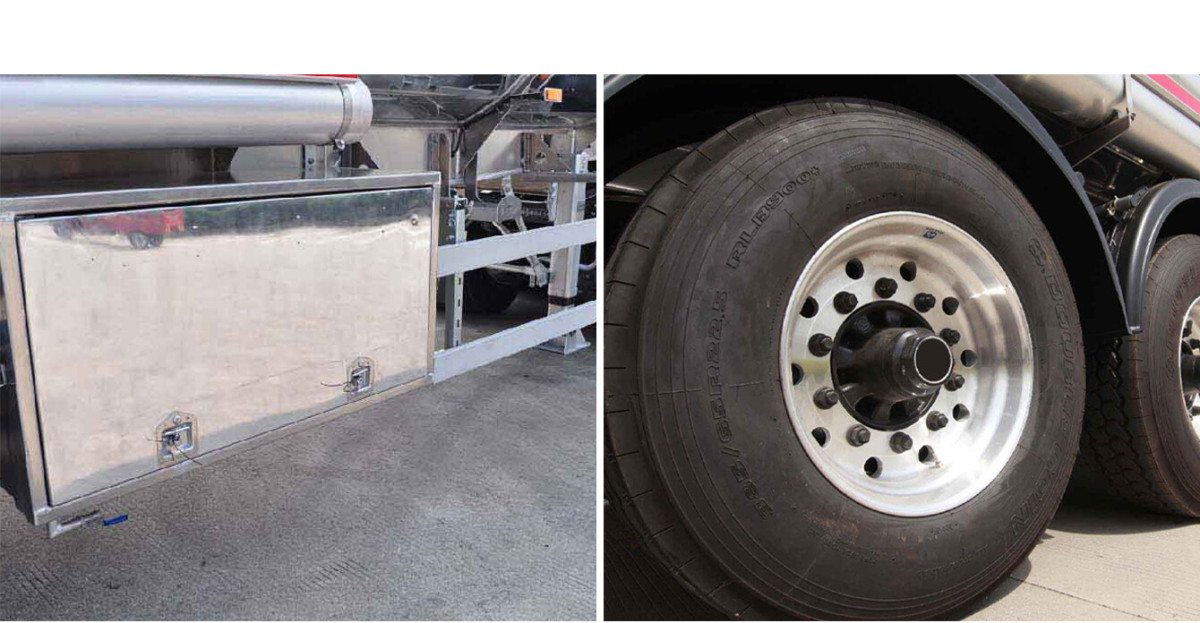

Tire	12R22.5 (10 pieces+1piece spare tire)

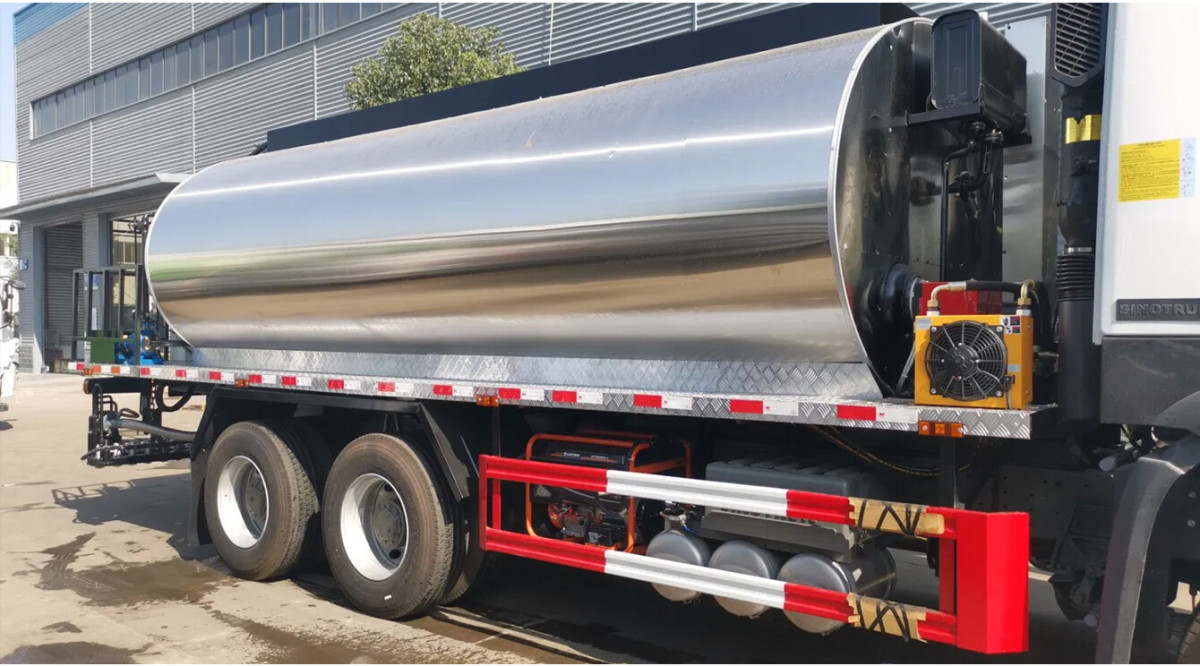

Asphalt Tank	16cbm
Outside Material	1.2mm Stainless plate
Insulation layer	40mm rock wool insulation layer,≤20C/8h
Asphalt pump	QGB950,950L/min
Driving Motor	05-130-BD31
Hydraulic System
Hydraulic pump	CBQ550-L
Proportional Valve	EFBG-03-160-HF
Shuttle Valve	Shanxi Yuci brand
Overflow Valve	Shanxi Yuci brand
Control System
Control System	CLW-32-01/Germany STW
Control Method	Computer control
Smart asphalt nozzle	36 pcs intelligent nozzles
Temperature sensor	2 pcs
Speed sensor	2 pcs
Heating System
Heating method	Automatic heating by oil
Burner	G20/Italy brand
Radiator	RISEN brand
Heat transfer oil pump	40-25-160
Gasoline Engine	LUTIAN brand,6kw
Spreading Width	6m
Spreading Speed	0.3~3.5L/min
Spreading Precision	±2%
