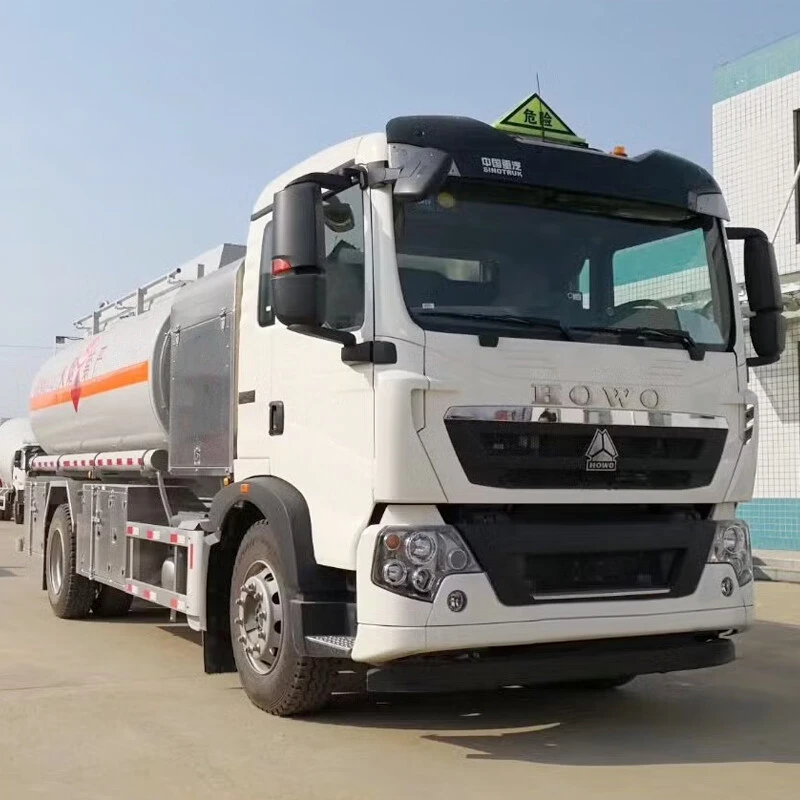

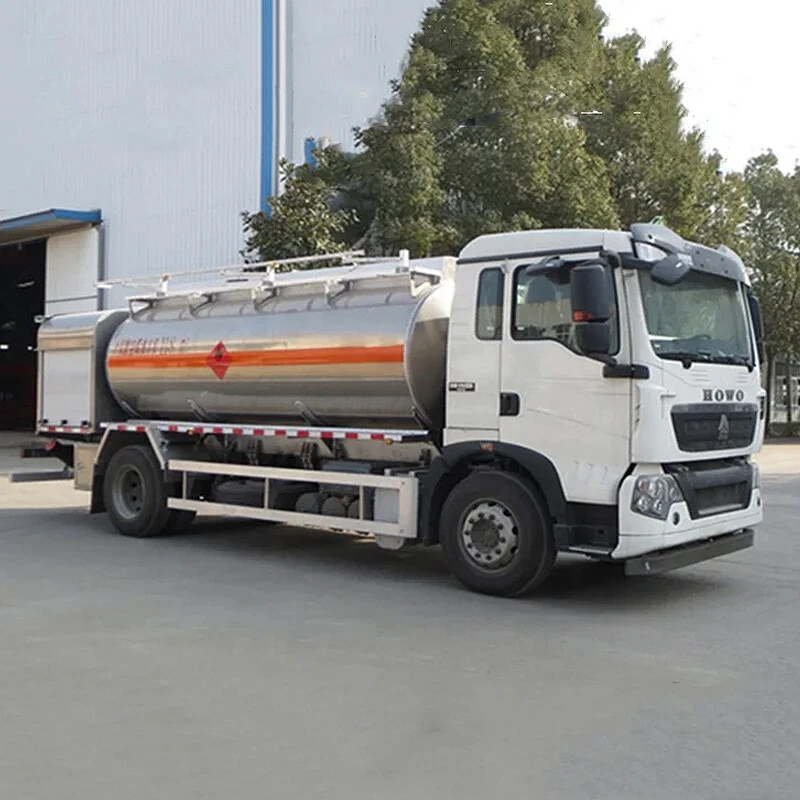

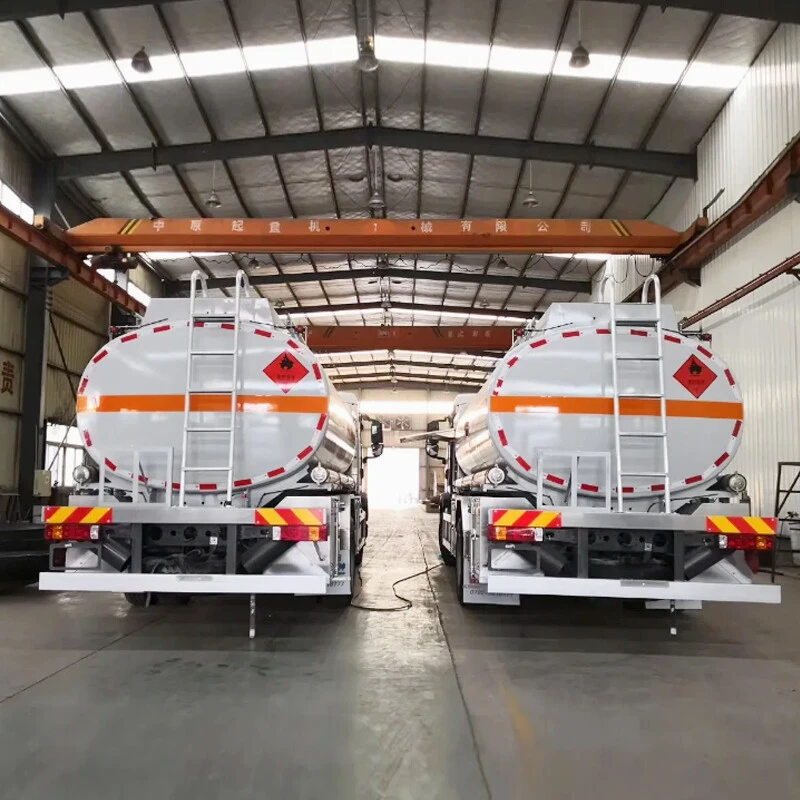

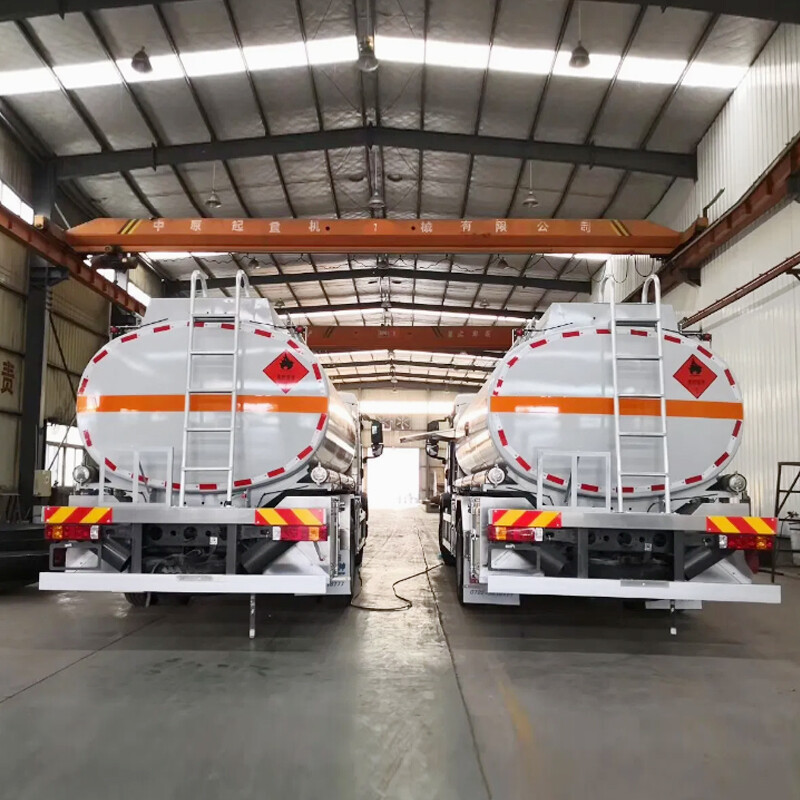

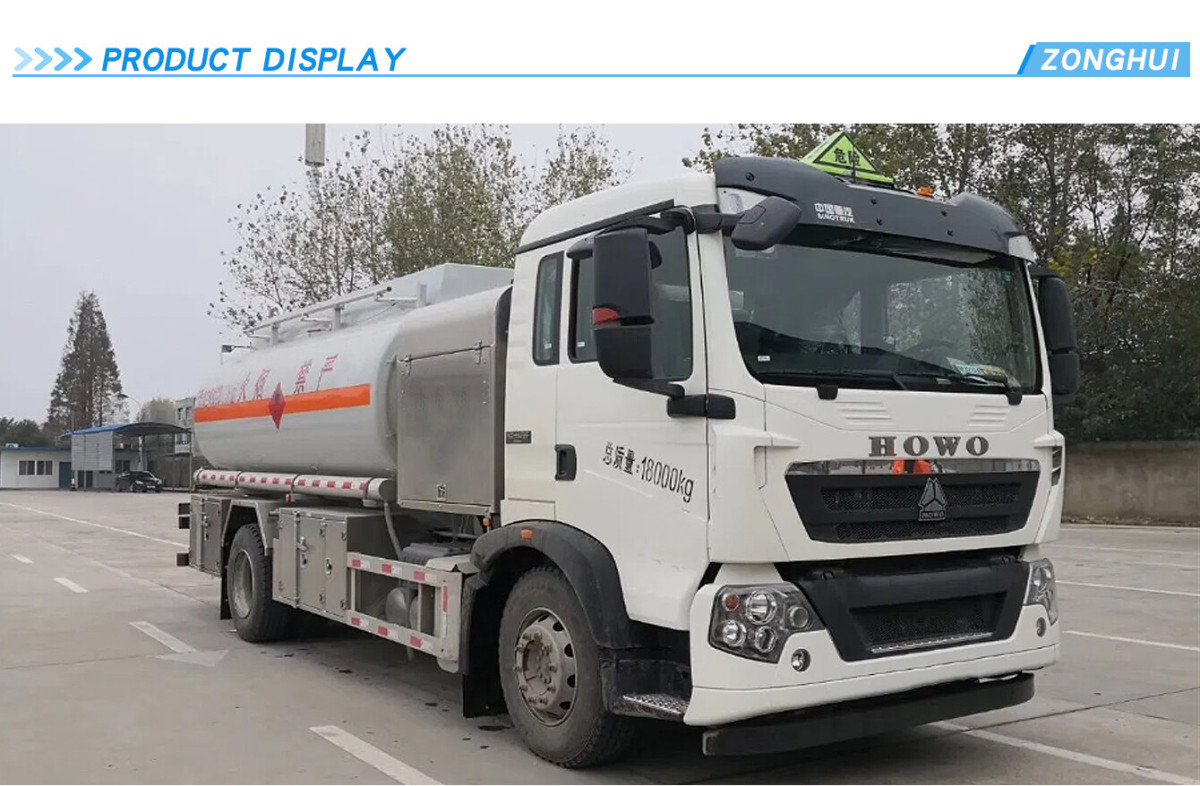

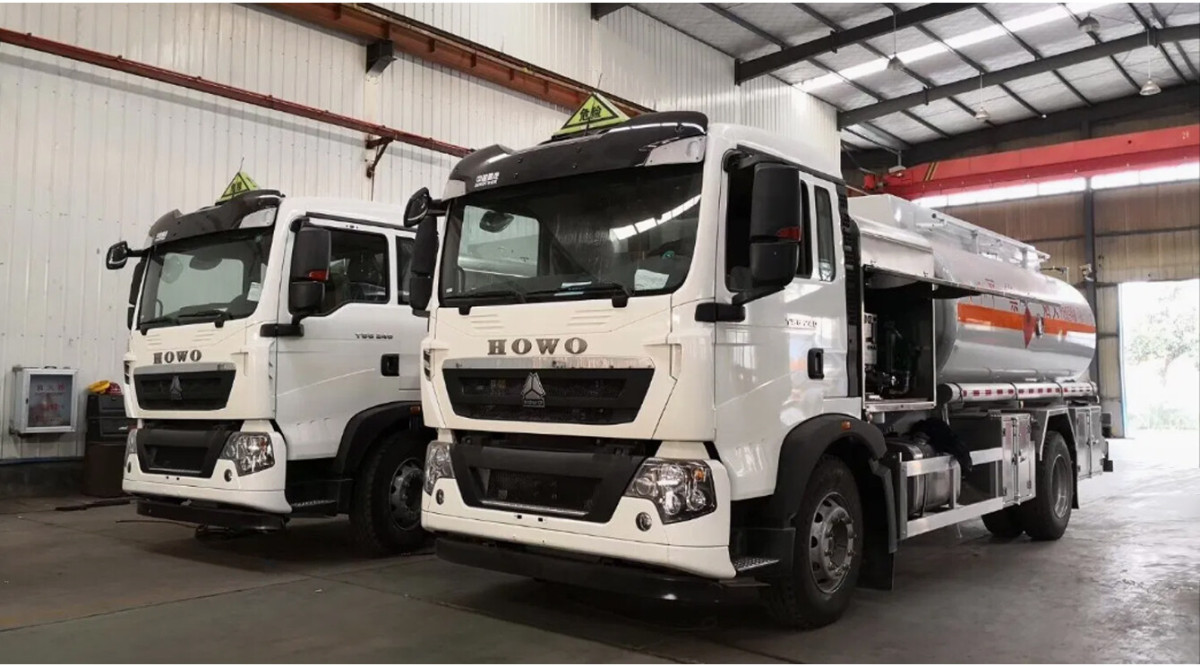

Sinotruk Howo 15000L Aluminum Alloy Helicopter Fuel Dispenser Truck

Product Description

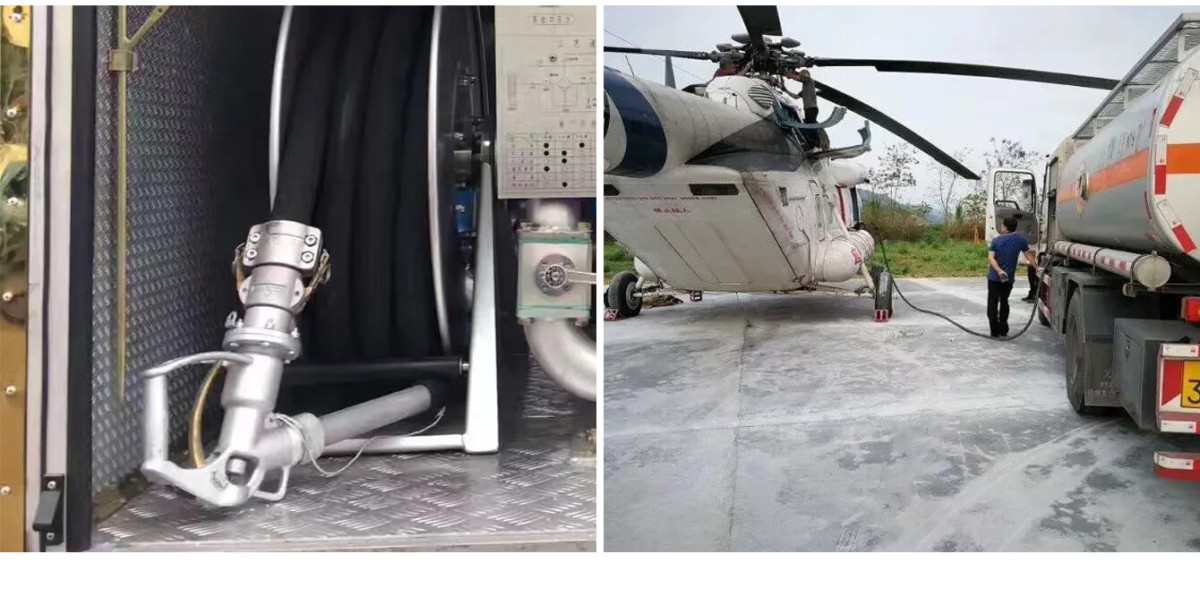

1.Purpose: It used for helicopter refueling and mobile transporting aviation kerosene.

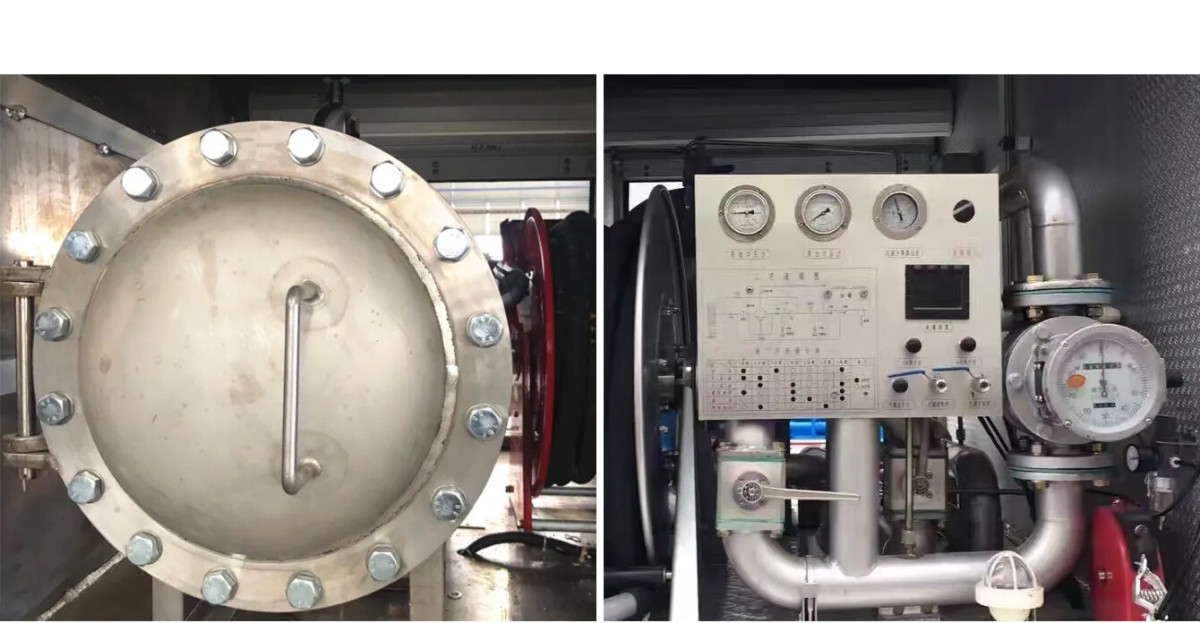

2. Main parts: Fuel pump, flow meter and filling gun etc.
3. Advantage: Our helicopter refueling truck have most competitive price.

Email

WhatsApp

>>>>PRODUCT DESCRIPTION

Specifications

Condition	New condition/Left hand drive/4x2
Chassis	Brand	SINOTRUK HOWO
	Curb weight(kg)	8805 kg
	Loading weight(kg)	7000/8000/9000kg
	Wheelbase(mm)	4200/4500/4700/5000mm
	Front/Rear axle loading weight(kg)	4000/7000kg
	Front/Rear overhang(mm)	1430/2370mm
	Approach/Departure angle(°)	18/12
	Max. driving speed(km/h)	80 km/h
	Clutch	Reinforced diaphragm clutch
	Brakes	Service brake: dual circuit compressed air brake. Parking brake:(emergency brake):spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake


	Steering Gear	Power steering, hydraulic steering with power assistance
	Tire	Quantity：6pcs with one spare tire
	Tire	Specifications：9.00-20
Transmission	Manual type,8 Forwards and 2 reverses
Steering	Power steering, hydraulic steering with power assistance
Cab	It can accommodate three people, With Air conditioner
Engine	Brand	SINOTRUK
	Model	WD615.62
	Fuel type	Diesel
	Displacement(ml)	9726 ml
	Power(kw)	156 kw
	Horsepower(HP)	266 HP
	Cylinder number	6 pcs
	Emission standard	Euro 2
Fuel tank	Capacity(cbm)	15.0 cbm/15 cbm
	Tank material	Aluminium alloy
	Thickness(mm)	5.0mm
	Compartment quantity(pcs)	1 pcs
	Filling medium	Aviation kerosene
Fuel pump	Quantity(pcs)	1 pcs
Fuel pump	Model	China local brand
Notes	1, Aluminium alloy safety valve 1 pc
	2, Mechanical type Ladder
	3, Filter system
	4, Control system
Remarks	Customized LOGO design as per customer needs!
