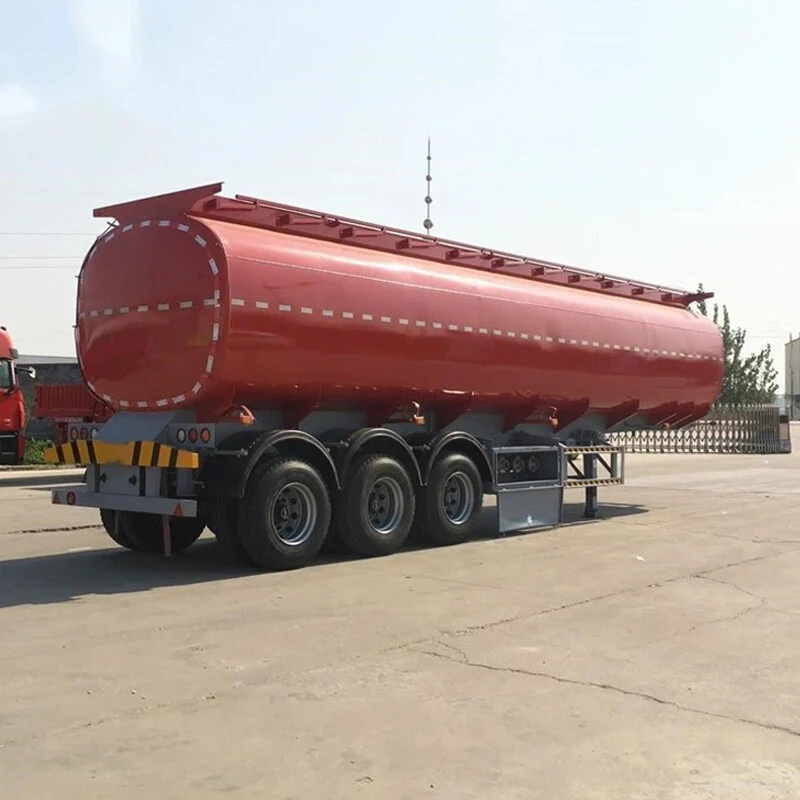

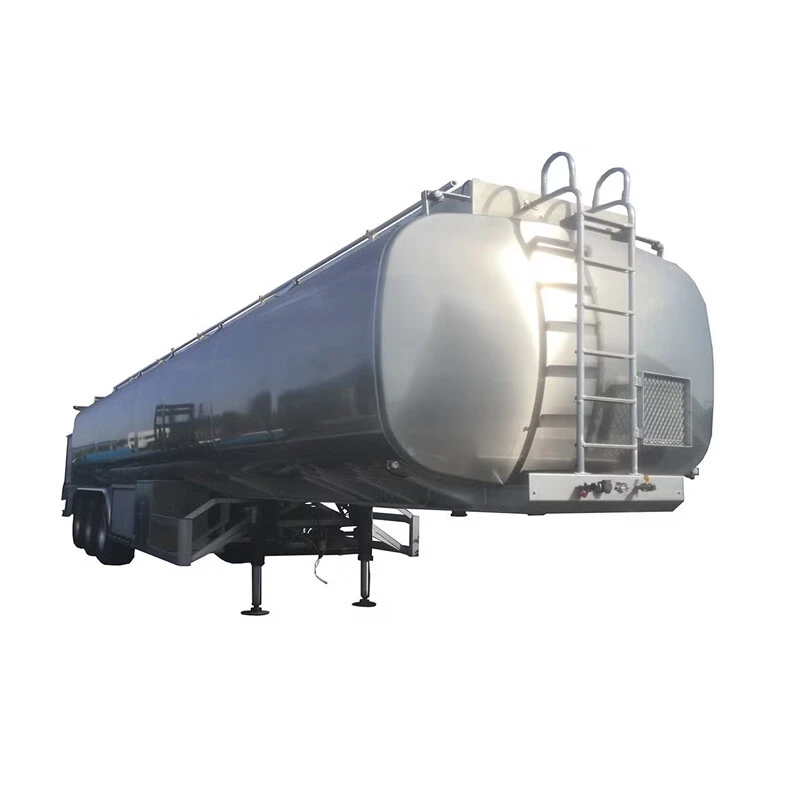

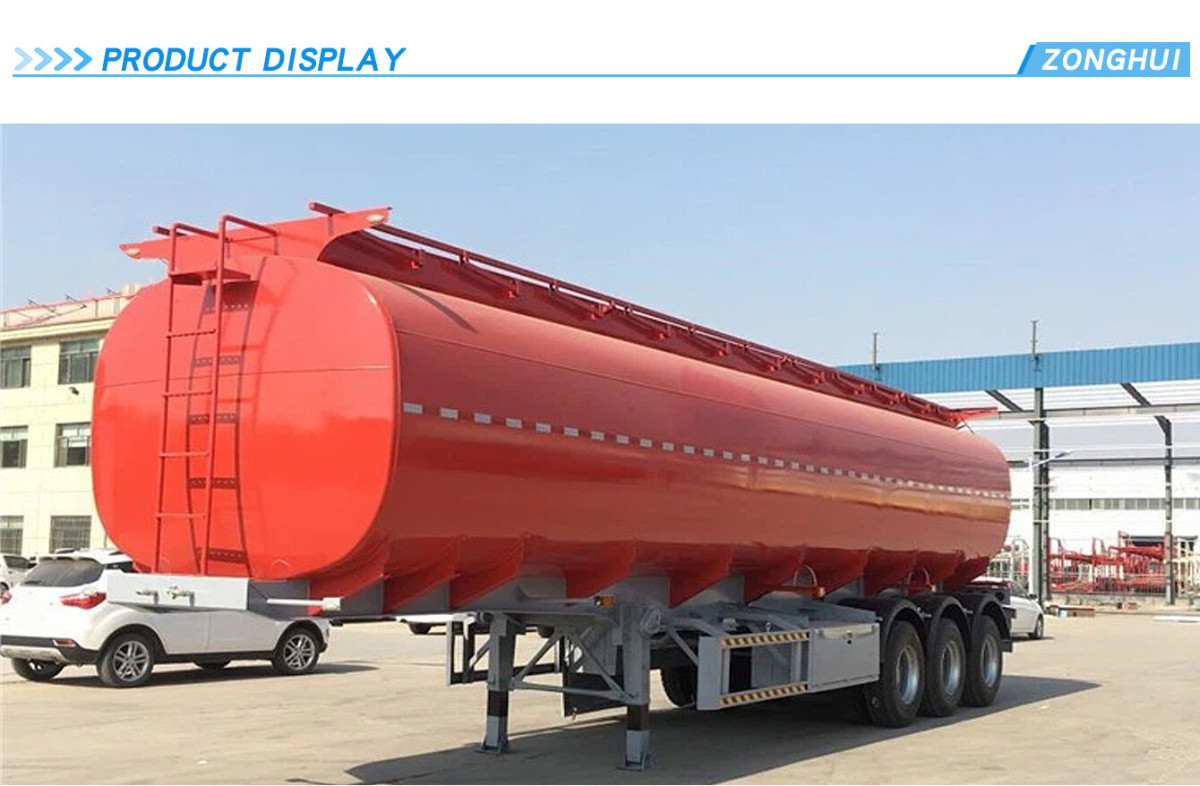

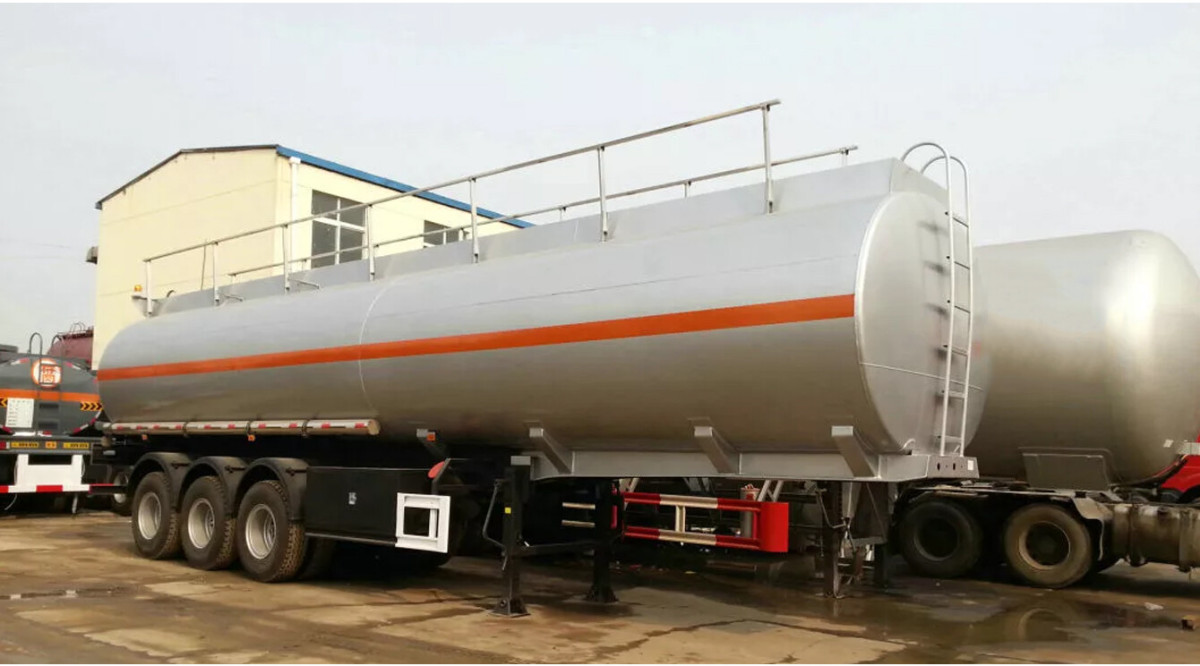

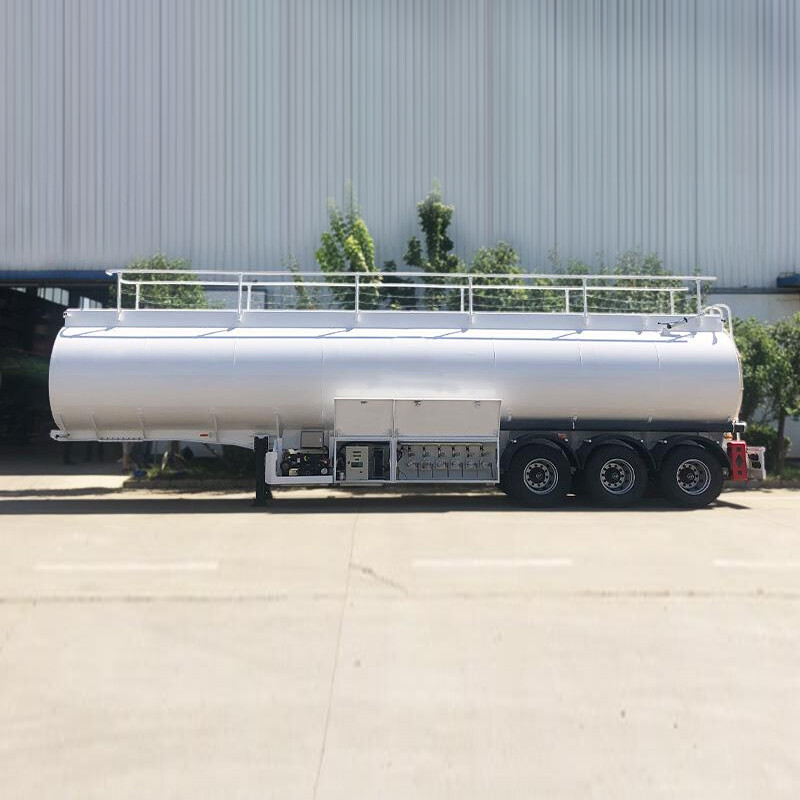

3-Axles Water Transport Semi-Trailer
Product Description
1.stainless steel or aluminum alloy tank material;
2.high quality water tanker;
3. tri-axle;
4. sprinkler function is optional;
5.various brands of tractor head can be provided according to customer's requests.

>>>>PRODUCT  DESCRIPTION

Specifications


  Tare weight  9500kg
  Size  11000mm*2500mm*3850mm
  Volume  40M3
  Tank body  carbon steel 5mm
  End plate  carbon steel 6mm
  Axle  3 axle FUWA brand 13T
  Suspension  Mechanical suspension
  Leaf spring  10pcs
  Manhole cover  500mm manhole cover with breath valve .2 sets
  Tire  12R22.5 double star brand 12pcs
  Wheel rim  9.0-22.5 better brand  12pcs

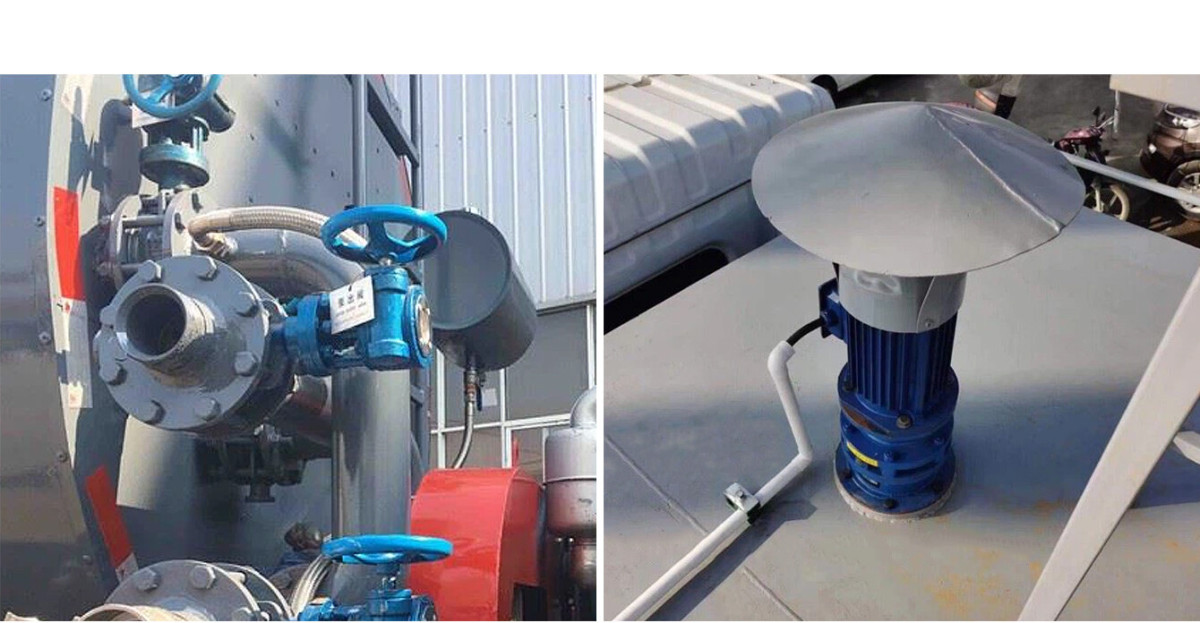

  Discharge valve  4"disc valve API
  Discharge pipe  4"seamless steel tube
  Bottom valve  2 set
  Kingpin  JOST brand 2" bolt-in king pin
  Landing gear  JOST brand two-speed, manual operating ,heavy duty landing gear 24T
  Compartment  Single
  Oil gas recovery system  Optional
  Anti overflow system  Optional
  Braking system  WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
  ABS  Optional
  Light  LED 8 side lights and 2 rear lights 2 width lamp
  Painting  Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
  Accessories

  One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light,two fire

  extinguisher
