| Tare Weight | 10800kg |
| Overall Width | 2500mm |
| Overall Length | 10000mm |
| Overall Height | 3780mm |
| Capacity | 14CBM |
| Mixing Tanker Sloping Angle | 10-14 degree |
| Mixing Tanker Revolving Speed | 12-20(r/min) |

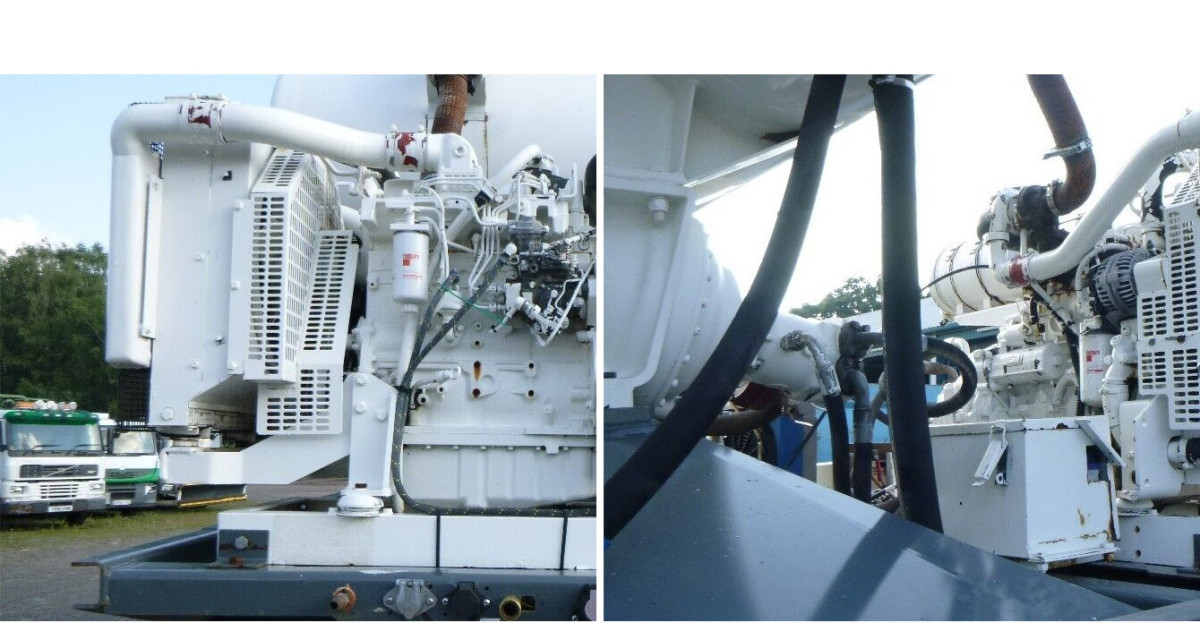

| Engine | Cummins diesel engine,140 hp |
| Hydraulic Pump | USA Eaton 6423-279 or Italian TOP brand |
| Hydraulic Motor | Eaton 6433-042 or Italian TOP brand |
| Gear Box | Italy Bonfiglioli 580L |
| Radiator | Italian brand YS26,26 liters |
| Axles | 2 axles |
| BPW 13 Ton , or FUWA 13TONS, L1 13TONS |
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gea |
| Suspension | German design heavy duty mechanical suspension , 13-pcs leaf spring |
| King Pin | JOST brand 2" bolt-in king pin |
| Landing Gear | JOST brand Two-speed, manual operating,heavy duty landing gear |
| Pneumatic Braking System | WABCO RE 4 relay valve;T30/30 Spring brake chamber;40L air tanks. |
| Wheel Rim | 9.00-22.5 wheel rim, 9 pcs lncluding one spare |
| Tire | 12R22.5 tubeless tire, 9 pcs Including one spare |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Accessories | One standard tool box, one spare tyre and carrier |
